Cydia pomonella

Biocontrol of the Codling moth
or Apple, Pear and Quince Tree Caterpillar

Common name: Carpocapse or Codling moth
Scientific name: Cydia pomonella
Order: Lepidoptera
Affects: Apple, pear, plum and quince trees, amongst others.
Main season: Spring, Summer and Autumn

Cydia Pomonella

General information

It is a pest of Palearctic origin that is currently distributed throughout the world and mainly causes damage to pip-fruit trees. It produces caterpillars in the fruit and is one of the most serious pests of pip-fruit crops.

Cydia (Laspeyresia) pomonella primarily attacks the fruit of apple, pear and quince trees. On occasion, it also attacks the fruit of walnut and chestnut trees, as well as apricots and plums.

Apples and adult Cydia pomonella


Morphology and biology

The adult’s wingspan can reach up to 20 mm in size. The forewings are greyish and in which a darker spot stands out in its distal area, bordered by a brighter area with golden tones, resembling a parenthesis.

Dorsal view of adult Cydia pomonella

The eggs are oviposited lengthwise on a branch or fruit and measure about 1 mm in size. They are circular, flat and white at the beginning. Later, they develop a characteristic red ring and before hatching the black head of the caterpillar can be seen.

Cydia pomonella laying

Eggs laid by Cydia pomonella

Cydia pomonella laying

Caterpillar Cydia pomonella

The caterpillar grows to 20 mm in size and goes through 5 larval stages. Initially it is white with a black head, which later changes to a pinkish colour with a brown-black head. It may have a more reddish colour during the summer in stone fruits. Carpocapse caterpillars differ from other carpophagous tortricids, in that they do not have an anal comb.The chrysalis is brown with a double row of spikes on its abdominal segments.

The insect overwinters in the form of a fully developed larva inside a very resistant silk cocoon that is found under the bark of tree trunks and main branches. It can also be found in warehouses, inside bags or drawers, or on the ground. The insect begins its development at the end of Winter and pupates at the start of Spring in March or April. The adults appear from May to June, although in warmer years they already fly in April.

It is characterised by having a very staggered emergence of adults, so that every year all generations are overlapped. The adults fly at night and are only active at temperatures above 15oC. In warm areas it has 2 to 3 generations a year, but the last generation may be only partial. One phenomenon they show is of optional diapause, meaning that a percentage of individuals from each generation enter diapause and their development is frozen until the following year. The entry into diapause of the final generation of caterpillars depends on the photoperiod, temperature and maturity of the fruit.

Each female oviposits 20 to 60 eggs, they are mainly found on leaves, although they can also be found on fruits or buds. After a few days the larvae hatch and move towards the fruit, where they start to feed on the peel and make a superficial erosion. Later, they perforate the fruit directly towards the core to feed on the pips.They then abandon the fruit to pupate on the trunk or on a branch.


Damage

As soon as the eggs hatch, the larvae head towards the fruit. Then, they bite into the peel which could last for 1 to 2 days. Afterwards, they penetrate the pulp towards the core, to get to the pips. They excrete the remains in the form of reddish sawdust through the entrance hole.

In the case of attacks on flowers, the larvae feed on the anthers and pistils inside. They then move on to other flowers and join the entire damaged area together with silk threads, forming masses inside in which there are dry petals and large amounts of dark coloured excrements. This damage can be confused with that of Cacoecia, the difference being that this last pest attacks with a preference for freshly grown fruits and not flowers. Also, Cacoecia does not produce sawdust and excrements.

Damage to Apples from Cydia pomonella

Superficial erosions of the peel cause a depreciation of the fruit just by their appearance alone, although it often happens that some larvae do not manage to enter the fruit and subsequently, they die.

If the caterpillar enters the fruit, it can fall prematurely, especially during the first and second generation. In any case, it is not fit for consumption. The loss of crops can be very significant, it could even be a total loss.


Detection and monitoring

We will use 1 to 3 traps per hectare, placed at the same height as the crops. They can be placed on a support for this purpose. The traps should be installed in Spring.


Mass trapping

To carry out mass trapping, it is recommended to use the kairomone diffuser ECONEX CYDIA POMONELLA KAIROMONE 2 MG 40 DAYS as it mainly captures the females of this species, with the aim of reducing mating. It reduces the population of this pest.

For mass trapping, the number of traps per surface area must be increased, depending on the location and uniformity of the plots. One trap controls a surface area between 500 m² and 1.000 m2. This means a density of at least 20 traps per hectare.

On the plot borders, it will be necessary to place a barrier of traps, separated 10 to 15 metres from each other.


Period of use

To achieve good control of Cydia pomonella, it is advisable to combine two methods: detection and monitoring; and mass trapping. In Spring, 1 to 3 traps should be installed to detect the pest and observe its population levels.

Through thresholds of tolerance established in each area, the moment to adopt control measures is later defined, in this case mass trapping. The threshold of tolerance for Cydia pomonella is very low and varies depending on the area. At this point, we recommend installing traps throughout the plot for mass capture.


Necessary material

An ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS trap is activated by placing an ECONEX DISPOSABLE WHITE TRIANGULAR trap and a pheromone diffuser ECONEX CYDIA POMONELLA.

The ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS trap is activated by placing an ECONEX SHEET FOR TRIANGULAR (1 UNIT). on the base of the trap. The sheet is impregnated with a pressure sensitive adhesive that is solvent free, in which the insects remain trapped.

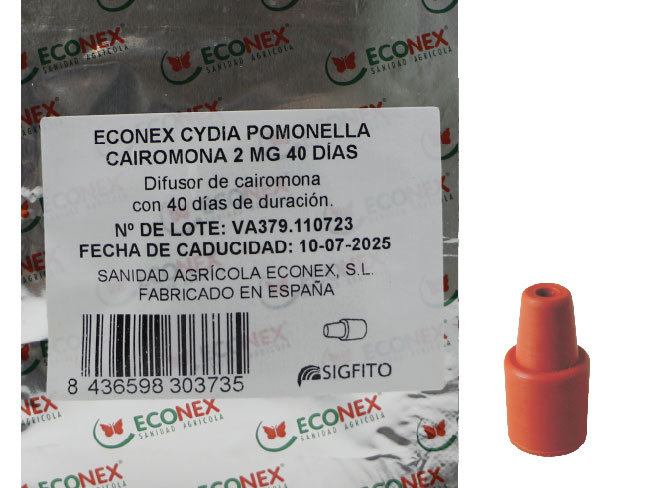

ECONEX CYDIA POMONELLA KAIROMONE 2 MG 40 DAYS Packaging and pheromone diffuser

ECONEX CYDIA POMONELLA KAIROMONE 2 MG 40 DAYS
Packaging and kairomone diffuser

Code: UIPHOVA379

button buy

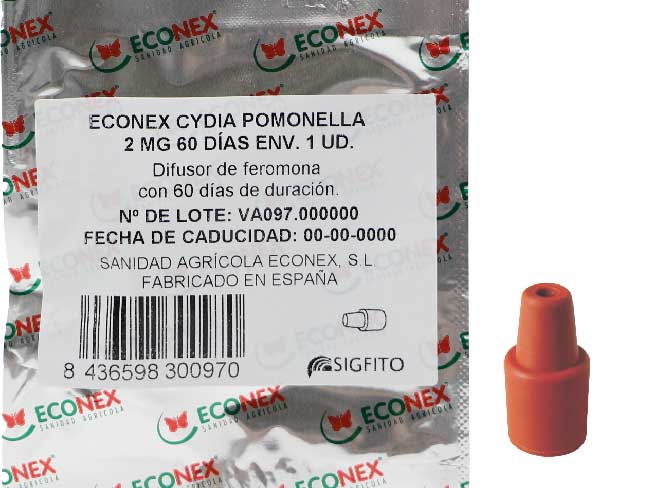

ECONEX CYDIA POMONELLA 2 MG 60 DAYS

ECONEX CYDIA POMONELLA 2 MG 60 DAYS
Packaging and pheromone diffuser.

Code: UIPHOVA097
OMDF register number (Ministry of Agriculture of Spain): 107/2016

button buy

>ECONEX CYDIA POMONELLA 2 MG 90 DAYS Packaging and pheromone diffuser

ECONEX CYDIA POMONELLA 2 MG 90 DAYS
Packaging and pheromone diffuser.

Code: UIPHOVA320

button buy

ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS

ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS

Code: UIPFETA273
OMDF register number (Ministry of Agriculture of Spain): 064/2014

button buy

ECONEX SHEET FOR TRIANGULAR (1 UNIT)

ECONEX SHEET FOR TRIANGULAR (1 UNIT)

Code: UIPFETA248
OMDF register number (Ministry of Agriculture of Spain): 048/2024

button buy

ECONEX DISPOSABLE WHITE TRIANGULAR

ECONEX DISPOSABLE WHITE TRIANGULAR

Code: UIPFETA242

button buy


Factors that influence the number of traps needed

The pest population, bordering crops, level of control required, etc…

One important factor is the crop size. In small and irregular sized crops, a greater number of traps will be needed than in crops with a larger and more uniform surface area.

Another important factor is the distance between plots that have the same pest Cydia pomonella In such cases, the crop borders should be reinforced. Therefore a trap density of up to 20 traps per hectare or more may be required in the case of mass trapping.


Storing the diffusers

The diffusers must be stored in their original packaging in a cool and dry place and separated from food and drinks.

To preserve the diffusers for long periods of time, it is recommended to keep them in the refrigerator at 4 o C in which case they will last for 2 years. Or they can be kept in the freezer at -20 o C for 4 years.

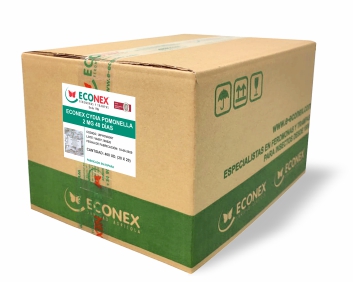

Diffuser packaging


ECONEX CYDIA POMONELLA KAIROMONE 2 MG 40 DAYS

Corrugated cardboard box of 400 units (20 packs of 20 units).
Box size: 0.24 x 0.32 x 0.22 m (length x width x height).
Box weight: 1.5 kg.

Pack of 20 units

Pack of 20 units

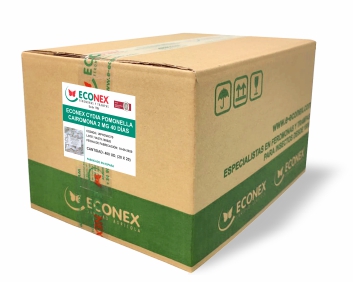

Box of 400 units

Box of 400 units.
(20 packs of 20 units)

ECONEX CYDIA POMONELLA 2 MG 60 DAYS

Corrugated cardboard box of 400 units (20 packs of 20 units).
Box size: 0.24 x 0.32 x 0.22 m (length x width x height).
Box weight: 1.5 kg.

Pack of 20 units

Pack of 20 units

Box of 400 units

Box of 400 units.
(20 packs of 20 units)

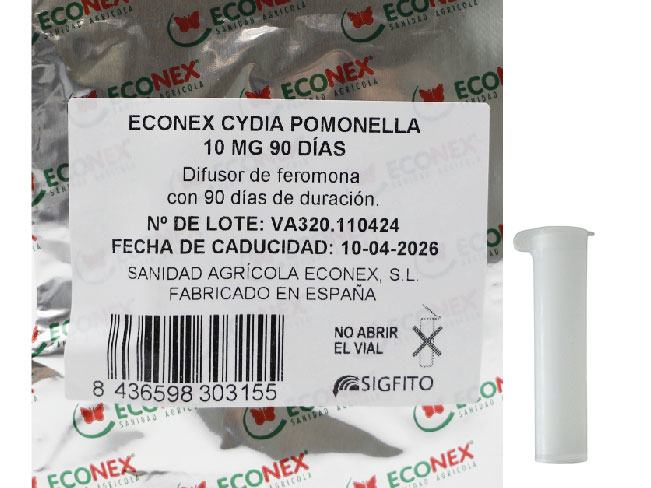

ECONEX CYDIA POMONELLA 10 MG 90 DAYS

Corrugated cardboard box of 400 units (20 packs of 20 units).
Box size: 0.24 x 0.32 x 0.22 m (length x width x height).
Box weight: 1,6 kg.

Pack of 20 units

Pack of 20 units

Box of 400 units

Box of 400 units.
(20 packs of 20 units)


Trap packaging



ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS

Corrugated cardboard box of 150 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 11.10 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 222 kg.

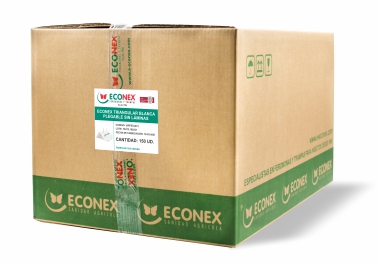

Box of 150 units

Box of 150 units.

ECONEX SHEET FOR TRIANGULAR (1 UNIT)

Corrugated cardboard box of 500 units.
Box size: 0.29 x 0.42 x 0.21 m (length x width x height).
Box weight: 10.75 kg.
No. of boxes per pallet: 50
Pallet size: 1.00 x 1.10 x 1.25 m (length x width x height).
Pallet weight: 545 kg.

Box of 500 units

Box of 500 units.


ECONEX DISPOSABLE WHITE TRIANGULAR

Corrugated cardboard box of 250 units.
Box size: 0.29 x 0.42 x 0.21 m (length x width x height).
Box weight: 13.10 kg.
No. of boxes per pallet: 50
Pallet size: 1.00 x 1.10 x 1.25 m (length x width x height).
Pallet weight: 665 kg.

Box of 250 units

Box of 250 units.
